RightMark Audio Analyzer test report

Testing device	XM6
Sampling mode	24-bit, 96 kHz
Interface
Testing chain	External loopback (line-in/headphone-out)
RMAA Version	6.2.3
20 Hz - 20 kHz filter	ON
Normalize amplitude	ON
Level change	0.1 dB / -0.1 dB
Mono mode	OFF
Calibration singal, Hz	1000
Polarity	correct/correct

Summary

Frequency response (from 40 Hz to 15 kHz), dB	+0.02, -0.13	Excellent
Noise level, dB (A)	-109.7	Excellent
Dynamic range, dB (A)	109.7	Excellent
THD, %	0.0003	Excellent
THD + Noise, dB (A)	-101.3	Excellent
IMD + Noise, %	0.0020	Excellent
Stereo crosstalk, dB	-101.7	Excellent
IMD at 10 kHz, %	0.0010	Excellent
General performance		Very good

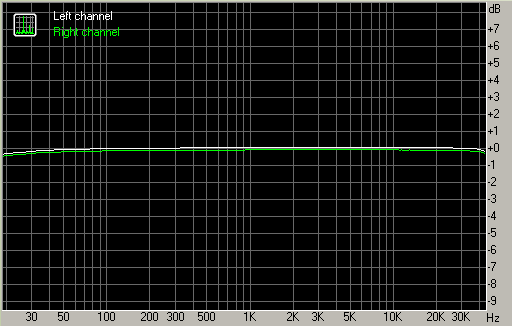

Frequency response

From 20 Hz to 20 kHz, dB	-0.33, +0.02
From 40 Hz to 15 kHz, dB	-0.13, +0.02

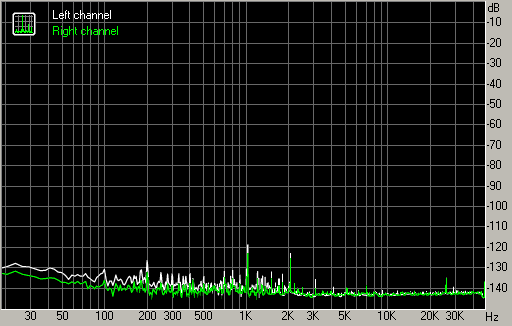

Noise level

	Left	Right
RMS power, dB	-108.2	-109.0
RMS power (A-weighted), dB	-109.2	-110.1
Peak level, dB FS	-78.4	-79.0
DC offset, %	+0.0	+0.0

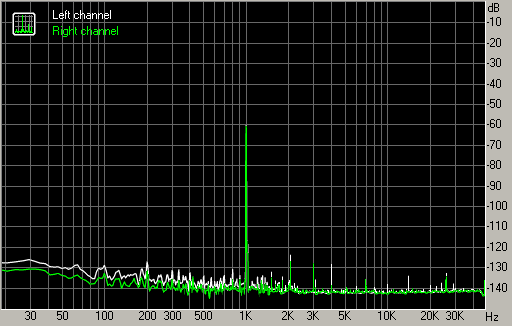

Dynamic range

	Left	Right
Dynamic range, dB	+108.3	+109.3
Dynamic range (A-weighted), dB	+109.2	+110.2
DC offset, %	+0.00	-0.00

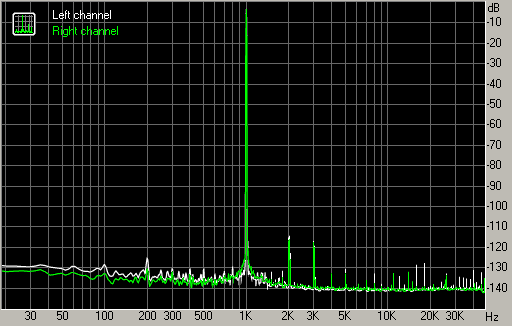

THD + Noise (at -3 dB FS)

	Left	Right
THD, %	+0.0004	+0.0003
THD + Noise, %	+0.0010	+0.0009
THD + Noise (A-weighted), %	+0.0009	+0.0008

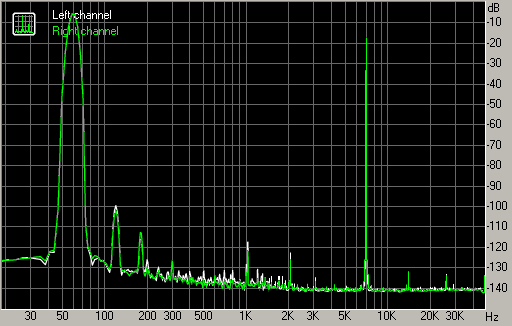

Intermodulation distortion

	Left	Right
IMD + Noise, %	+0.0021	+0.0019
IMD + Noise (A-weighted), %	+0.0010	+0.0009

Stereo crosstalk

	Left	Right
Crosstalk at 100 Hz, dB	-104	-102
Crosstalk at 1000 Hz, dB	-96	-105
Crosstalk at 10000 Hz, dB	-76	-105

IMD (swept tones)

	Left	Right
IMD + Noise at 5000 Hz,	0.0011	0.0010
IMD + Noise at 10000 Hz,	0.0010	0.0009
IMD + Noise at 15000 Hz,	0.0010	0.0010
