Practical Devices Corporation

XM5 RMAA Test Results

RightMark Audio Analyzer test

Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 96 kHz
Base XM5, using analog Line-In.


Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.13Excellent
Noise level, dB (A): -102.7Excellent
Dynamic range, dB (A): 103.3Excellent
THD, %: 0.0004Excellent
IMD + Noise, %: 0.0070Excellent
Stereo crosstalk, dB: -89.0Excellent
IMD at 10 kHz, %: 0.0035Excellent

General performance: Excellent

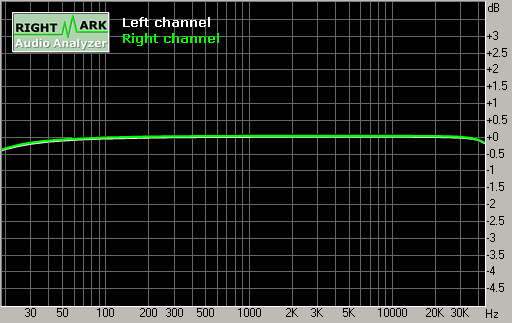

Frequency response

Spectrum graph

Frequency range Response
From 20 Hz to 20 kHz, dB-0.35, +0.02
From 40 Hz to 15 kHz, dB-0.13, +0.02

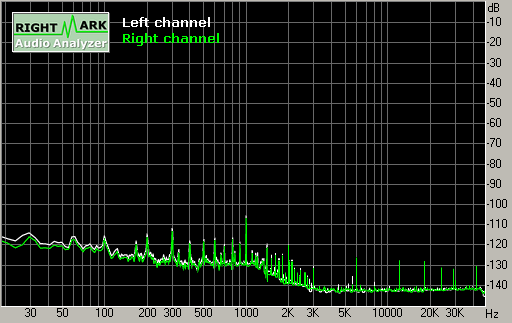

Noise level

Spectrum graph

Parameter Left Right
RMS power, dB:-98.0-98.8
RMS power (A-weighted), dB:-101.7-102.7
Peak level, dB FS:-79.7-80.3
DC offset, %:0.000.00

Dynamic range

Spectrum graph

Parameter Left Right
Dynamic range, dB:+98.9+99.9
Dynamic range (A-weighted), dB:+103.3+104.3
DC offset, %:-0.00-0.00

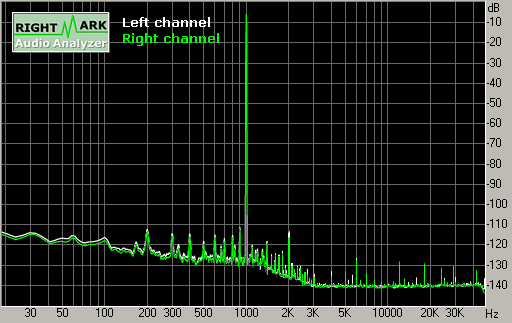

THD + Noise (at -3 dB FS)

Spectrum graph

Parameter Left Right
THD, %:0.00050.0004
THD + Noise, %:0.00280.0025
THD + Noise (A-weighted), %:0.00200.0018

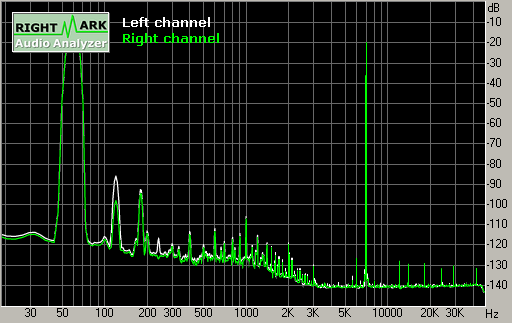

Intermodulation distortion

Spectrum graph

Parameter Left Right
IMD + Noise, %:0.01450.0070
IMD + Noise (A-weighted), %:0.00420.0031

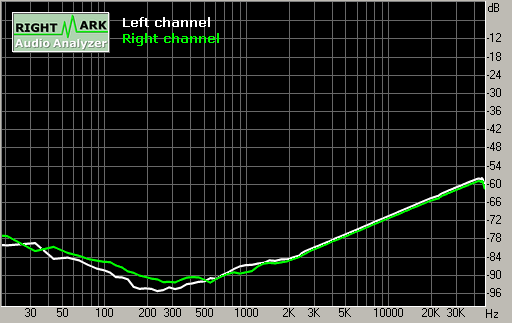

Stereo crosstalk

Spectrum graph

Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-87-85
Crosstalk at 1 kHz, dB:-86-88
Crosstalk at 10 kHz, dB:-69-70

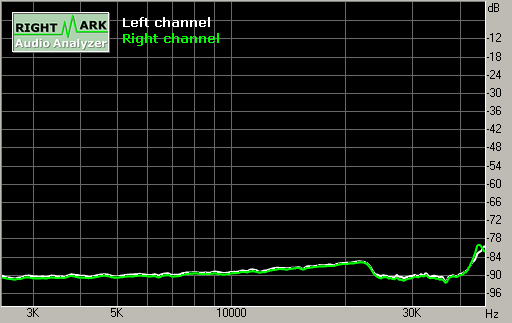

IMD (swept tones)

Spectrum graph

Parameter Left Right
IMD + Noise at 5 kHz, %:0.00300.0029
IMD + Noise at 10 kHz, %:0.00360.0034
IMD + Noise at 15 kHz, %:0.00430.0042

This report was generated by RightMark Audio Analyzer 5.5
