XM4

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 96 kHz




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.11Excellent
Noise level, dB (A): -100.3Excellent
Dynamic range, dB (A): 100.1Excellent
THD, %: 0.0020Excellent
IMD + Noise, %: 0.0078Excellent
Stereo crosstalk, dB: -100.5Excellent
IMD at 10 kHz, %: 0.014Very good

General performance: Excellent




Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.43, +0.02
From 40 Hz to 15 kHz, dB-0.11, +0.02

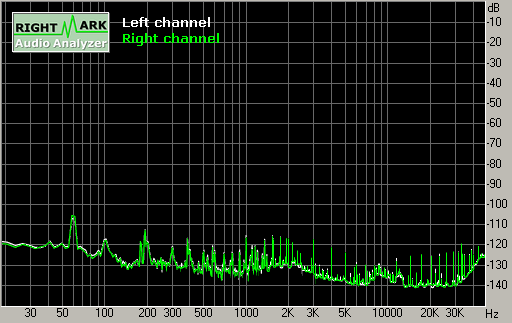

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-94.8-95.1
RMS power (A-weighted), dB:-100.0-100.3
Peak level, dB FS:-80.9-81.7
DC offset, %:-0.00-0.00

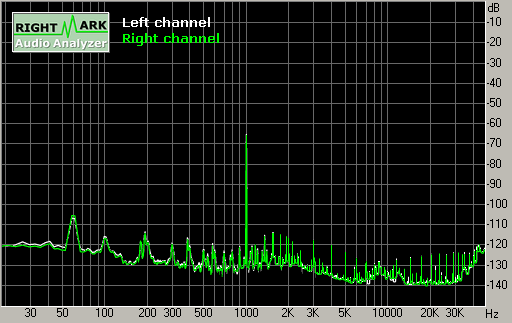

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+94.9+95.3
Dynamic range (A-weighted), dB:+100.1+100.5
DC offset, %:0.000.00

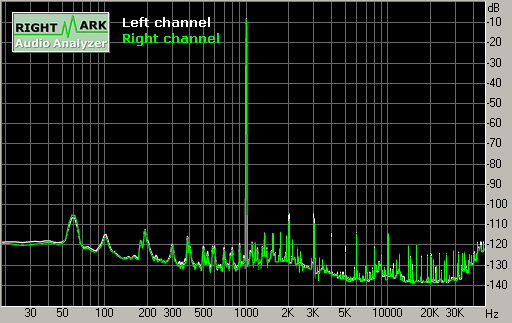

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00230.0020
THD + Noise, %:0.00650.0065
THD + Noise (A-weighted), %:0.00450.0043

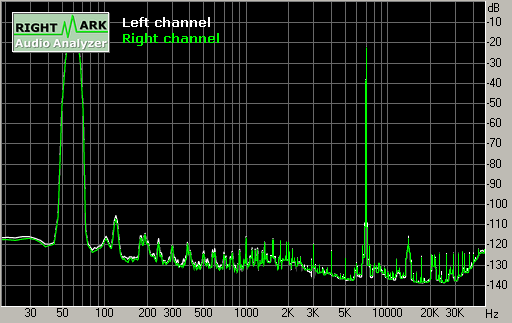

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.00780.0080
IMD + Noise (A-weighted), %:0.00470.0047

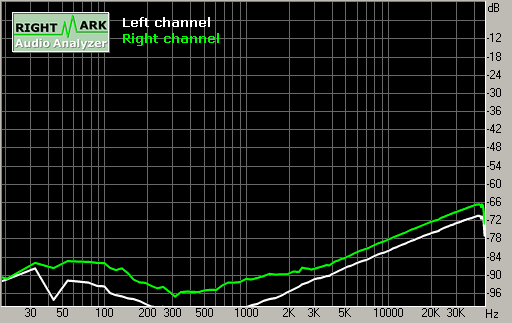

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-93-85
Crosstalk at 1 kHz, dB:-99-90
Crosstalk at 10 kHz, dB:-81-77

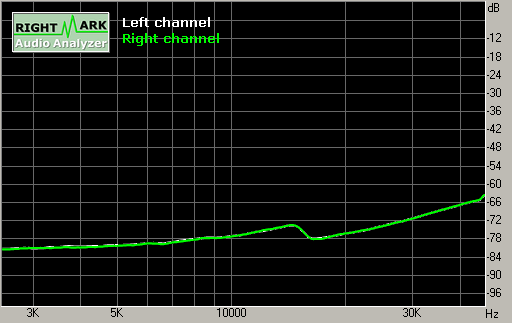

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.00990.0097
IMD + Noise at 10 kHz, %:0.01400.0138
IMD + Noise at 15 kHz, %:0.01950.0196

This report was generated by RightMark Audio Analyzer 5.5
